Wire straightening machine wire mesh machine

You are here:Hmoe > Products > Steel straightening machine > Wire straightening machine wire mesh machine

Wire straightening machine wire mesh machine

Wire straightening machine wire mesh machine

Details

Supply> Supply Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., Ltd. Luoyang Hongte Machinery Equipment Co., 2004 in accordance with the relevant provisions of the state restructuring for the Luoyang Hong special machinery and equipment Limited. The company mainly for the steel straightening cutting machine manufacturing sales, machinery and equipment overhaul, non-standard equipment manufacturing. The company is strong in technology, well-equipped, high technical staff quality. The company developed high-efficiency steel straightening cutting machine has reached the advanced level of similar foreign products, high efficiency, good quality, by domestic and foreign steel dealers, steel welded wire mesh production enterprises, steel distribution centers and other users of praise. Products have been exported to Laos Myanmar Southeast Asia, Taiwan and Europe. Welcome friends from all walks of life patrons, visit the guide.

Reinforced wire straightening machine for more information
Brand: Hunt
Steel wire straightening machine wire mesh machine Model: GT3 / 10
Product alias: steel straightening machine, steel straightening machine
Product use: steel welded wire mesh distribution
Steel wire straightening machine wire mesh machine type: steel straightening machine

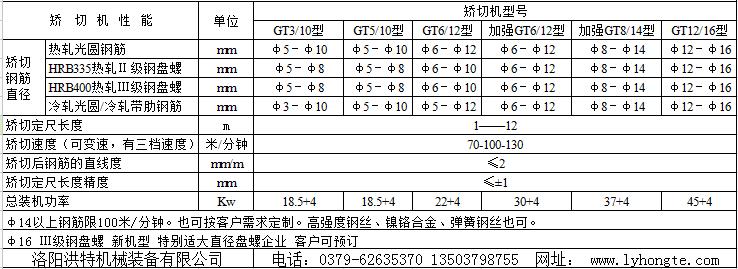

Technical parameters of wire mesh machine for wire straightening machine
钢筋调直机焊网机

The Function and Characteristics of Wire Mesh Machine for Reinforcement
1. Cut the length of the steel without error,
2. double-headed pull,
3. The last meter of steel finished pull up,
4. Construction tungsten steel mold,
5. Product wire with the end of the ball, out of the steel will not hurt the surface.

The working principle of wire mesh machine
First by the motor through the belt drive speed, so that high-speed rotation of the barrel, through the straightening of the steel bar is straightened by the straightening mold to remove the steel surface of the rust;
By the motor through another pair of slowdown belt drive and gear box, on the one hand drive two transmission pressure roller, traction steel forward movement, on the other hand drive the crank wheel, so that the hammer up and down movement.
When the steel bar to adjust to the length of a predetermined length, hammer hammer on the knife, the steel cut off, cut off the steel into the receiving frame, due to the role of spring, knife back to the original position to complete a cycle.

Steel wire straightening machine wire mesh machine products
钢筋调直机焊网机
